Nginx作为缓存WEB服务
通常情况下缓存是用来减少后端压力, 将压力尽可能的往前推, 减少后端压力,提高网站并发延时
1.缓存常见类型

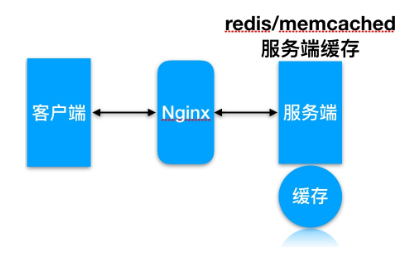

服务端缓存

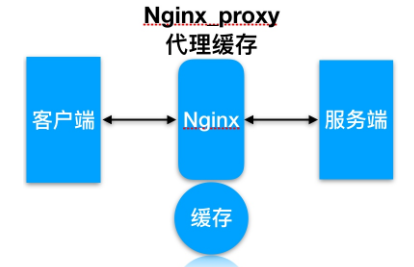

代理缓存, 获取服务端内容进行缓存
客户端浏览器缓存

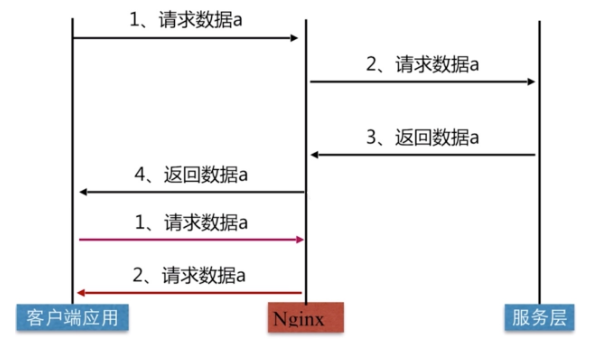

Nginx代理缓存原理
2.缓存配置语法
proxy_cache配置语法
Syntax: proxy_cache zone | off; Default: proxy_cache off; Context: http, server, location
缓存路径
Syntax: proxy_cache_path path [levels=levels] [use_temp_path=on|off] keys_zone=name:size [inactive=time] [max_size=size] [manager_files=number] [manager_sleep=time][manager_threshold=time] [loader_files=number] [loader_sleep=time] [loader_threshold=time] [purger=on|off] [purger_files=number] [purger_sleep=time] [purger_threshold=time]; Default: — Context: http
缓存过期周期
Syntax: proxy_cache_valid [code ...] time; Default: — Context: http, server, location
示例
proxy_cache_valid 200 302 10m; proxy_cache_valid 404 1m;
缓存的维度
Syntax: proxy_cache_key string; Default: proxy_cache_key $scheme$proxy_host$request_uri; Context: http, server, location
示例
proxy_cache_key "$host$request_uri $cookie_user"; proxy_cache_key $scheme$proxy_host$uri$is_args$args;
3.缓存配置实践
1.准备
系统服务地址
CentOS7.4Nginx Proxy192.168.69.112
CentOS7.4Nginx Web192.168.69.113
2.web节点准备
建立相关目录
[root@nginx ~]# mkdir -p /soft/code{1..3}建立相关html文件
[root@nginx ~]# for i in {1..3};do echo Code1-Url$i > /soft/code1/url$i.html;done
[root@nginx ~]# for i in {1..3};do echo Code2-Url$i > /soft/code2/url$i.html;done
[root@nginx ~]# for i in {1..3};do echo Code3-Url$i > /soft/code3/url$i.html;done配置Nginx
[root@nginx ~]# cat /etc/nginx/conf.d/web_node.conf
server {
listen 8081;
root /soft/code1;
index index.html;
}
server {
listen 8082;
root /soft/code2;
index index.html;
}
server {
listen 8083;
root /soft/code3;
index index.html;
}检查监听端口
[root@nginx ~]# netstat -lntp|grep 80 tcp 0 0 0.0.0.0:8081 0.0.0.0:* LISTEN 50922/nginx: master tcp 0 0 0.0.0.0:8082 0.0.0.0:* LISTEN 50922/nginx: master tcp 0 0 0.0.0.0:8083 0.0.0.0:* LISTEN 50922/nginx: master
3.代理配置缓存
[root@proxy ~]# mkdir /soft/cache
[root@proxy ~]# cat /etc/nginx/conf.d/proxy_cache.conf
upstream cache {
server 192.168.69.113:8081;
server 192.168.69.113:8082;
server 192.168.69.113:8083;
}proxy_cache #存放缓存临时文件
levels #按照两层目录分级
keys_zone #开辟空间名, 10m:开辟空间大小, 1m可存放8000key
max_size #控制最大大小, 超过后Nginx会启用淘汰规则
inactive #60分钟没有被访问缓存会被清理
use_temp_path #临时文件, 会影响性能, 建议关闭
proxy_cache_path /soft/cache levels=1:2 keys_zone=code_cache:10m max_size=10g inactive=60m use_temp_path=off;
server {
listen 80;
server_name 192.168.69.12;
#proxy_cache 开启缓存
#proxy_cache_valid 状态码200|304的过期为12h, 其余状态码10分钟过期
#proxy_cache_key 缓存key
#add_header 增加头信息, 观察客户端respoce是否命中
#proxy_next_upstream 出现502-504或错误, 会跳过此台服务器访问下台
location / {
proxy_pass http://cache;
proxy_cache code_cache;
proxy_cache_valid 200 304 12h;
proxy_cache_valid any 10m;
add_header Nginx-Cache "$upstream_cache_status";
proxy_next_upstream error timeout invalid_header http_500 http_502 http_503 http_504;
include proxy_params;
}
}4.客户端测试
[root@nginx ~]# curl -s -I http://192.168.56.11/url3.html|grep "Nginx-Cache" Nginx-Cache: MISS
命中
[root@nginx ~]# curl -s -I http://192.168.56.11/url3.html|grep "Nginx-Cache" Nginx-Cache: HIT
4.缓存清理实践
如何清理proxy_cache代理缓存
1.rm删除已缓存数据
[root@proxy ~]# rm -rf /soft/cache/* [root@proxy ~]# curl -s -I http://192.168.56.11/url3.html|grep "Nginx-Cache" Nginx-Cache: MISS
通过ngx_cache_purge扩展模块清理, 需要编译安装Nginx
#建立对应目录
[root@proxy ~]# mkdir /soft/src
[root@proxy ~]# cd /soft/src
#下载Nginx包
[root@proxy ~]# wget http://nginx.org/download/nginx-1.12.2.tar.gz
[root@proxy ~]# tar xf nginx-1.12.2.tar.gz
#下载ngx_cache_purge
[root@proxy ~]# wget http://labs.frickle.com/files/ngx_cache_purge-2.3.tar.gz
[root@proxy ~]# tar xf ngx_cache_purge-2.3.tar.gz
#编译Nginx
[root@nginx src]# cd nginx-1.12.2/ && ./configure \
--prefix=/server/nginx --add-module=../ngx_cache_purge-2.3 \
--with-http_stub_status_module --with-http_ssl_module
[root@nginx src]# make && make install
#需要将上文的缓存proxy_cache.conf文件拷贝至源码包中, 并增加如下内容
location ~ /purge(/.*) {
allow 127.0.0.1;
allow 192.168.69.0/24;
deny all;
proxy_cache_purge code_cache $host$1$is_args$args;
}
#检测配置重新加载
[root@nginx conf.d]# /server/nginx/sbin/nginx -t

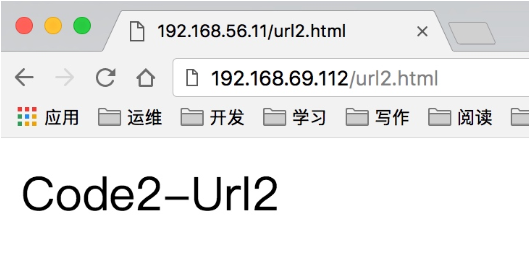

[root@nginx conf.d]# /server/nginx/sbin/nginx -s reload使用浏览器访问建立缓存

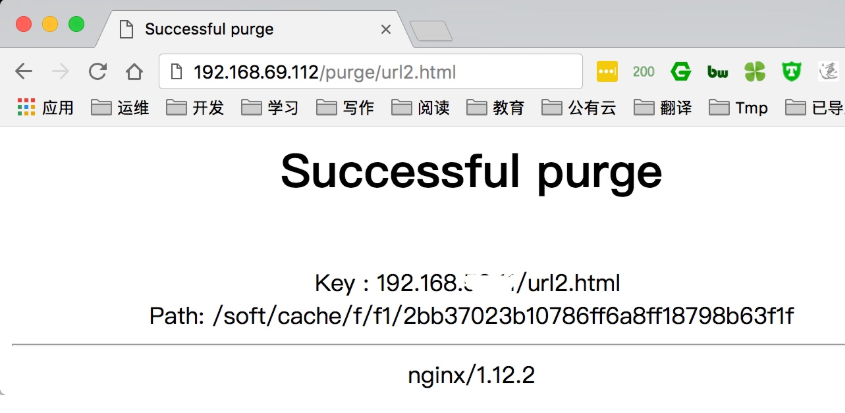

通过purge请求对应的缓存数据
再次刷新就会404因为缓存内容已清理
5.部分页面不缓存
指定部分页面不进行proxy_Cache缓存
cat proxy_cache.conf
upstream cache{
server 192.168.69.113:8081;
server 192.168.69.113:8082;
server 192.168.69.113:8083;
}
proxy_cache_path /soft/cache levels=1:2 keys_zone=code_cache:10m max_size=10g inactive=60m use_temp_path=off;
server {
listen 80;
server_name 192.168.69.112;
if ($request_uri ~ ^/(url3|login|register|password)) {
set $cookie_nocache 1;
}
location / {
proxy_pass http://cache;
proxy_cache code_cache;
proxy_cache_valid 200 304 12h;
proxy_cache_valid any 10m;
proxy_cache_key $host$uri$is_args$args;
'proxy_no_cache $cookie_nocache $arg_nocache $arg_comment;
proxy_no_cache $http_pargma $http_authorization;'
add_header Nginx-Cache "$upstream_cache_status";
proxy_next_upstream error timeout invalid_header http_500 http_502 http_503 http_504;
include proxy_params;
}
}#清理缓存 [root@nginx ~]# rm -rf /soft/cache/* #请求测试 [root@nginx ~]# curl -s -I http://192.168.69.112/url3.html|grep "Nginx-Cache" Nginx-Cache: MISS [root@nginx ~]# curl -s -I http://192.168.69.112/url3.html|grep "Nginx-Cache" Nginx-Cache: MISS [root@nginx ~]# curl -s -I http://192.168.69.112/url3.html|grep "Nginx-Cache" Nginx-Cache: MISS
6.缓存日志记录统计
通过日志记录proxy_cache命中情况与对应url
#修改/etc/nginx/nginx.conf中log_format格式 log_format main '$http_user_agent' '$request_uri' '$remote_addr - $remote_user [$time_local] "$request" ' '$status $body_bytes_sent "$http_referer" ' '"$http_user_agent" "$http_x_forwarded_for"' '"$upstream_cache_status"'; #修改proxy_cache.conf, 在server标签新增access日志 access_log /var/log/nginx/proxy_cache.log main; #使用curl访问, 最后检查日志命令情况 curl/7.29.0/url3.html192.168.56.183 - - [19/Apr/2018:11:48:43 -0400] "HEAD /url3.html HTTP/1.1" 200 0 "-" "curl/7.29.0" "-""MISS" curl/7.29.0/url2.html192.168.56.183 - - [19/Apr/2018:11:48:45 -0400] "HEAD /url2.html HTTP/1.1" 200 0 "-" "curl/7.29.0" "-""HIT" curl/7.29.0/url2.html192.168.56.183 - - [19/Apr/2018:11:48:46 -0400] "HEAD /url2.html HTTP/1.1" 200 0 "-" "curl/7.29.0" "-""HIT"
